24-gauge steel, 1-3/4" snap-lock seams and concealed clips — no screws through the panel face for the sun to work on. Our recommendation for homes you plan to keep.
At a glance
A standing seam roof is made of flat metal panels that run from the ridge down to the eave. Where two panels meet, their edges stand up and snap together into a raised seam. Clips hidden under that seam hold the roof to the deck, so nothing pierces the face of the panel.
| Steel | 24 gauge |
|---|---|
| Seam | 1-3/4" snap-lock |
| Panel width | 18" |
| Fastening | Concealed clips under the seam — no screws through the panel face |
| Panel surface | Striated pans that help minimize visible oil-canning |
| Length | Cut to the exact length of your roof |
| Minimum pitch | 3:12 |
| Colors | Its own premium color range — ask us |
| Typical service life | 40–70 years (typical industry range, not a warranty) |
Is it right for you?
Real project

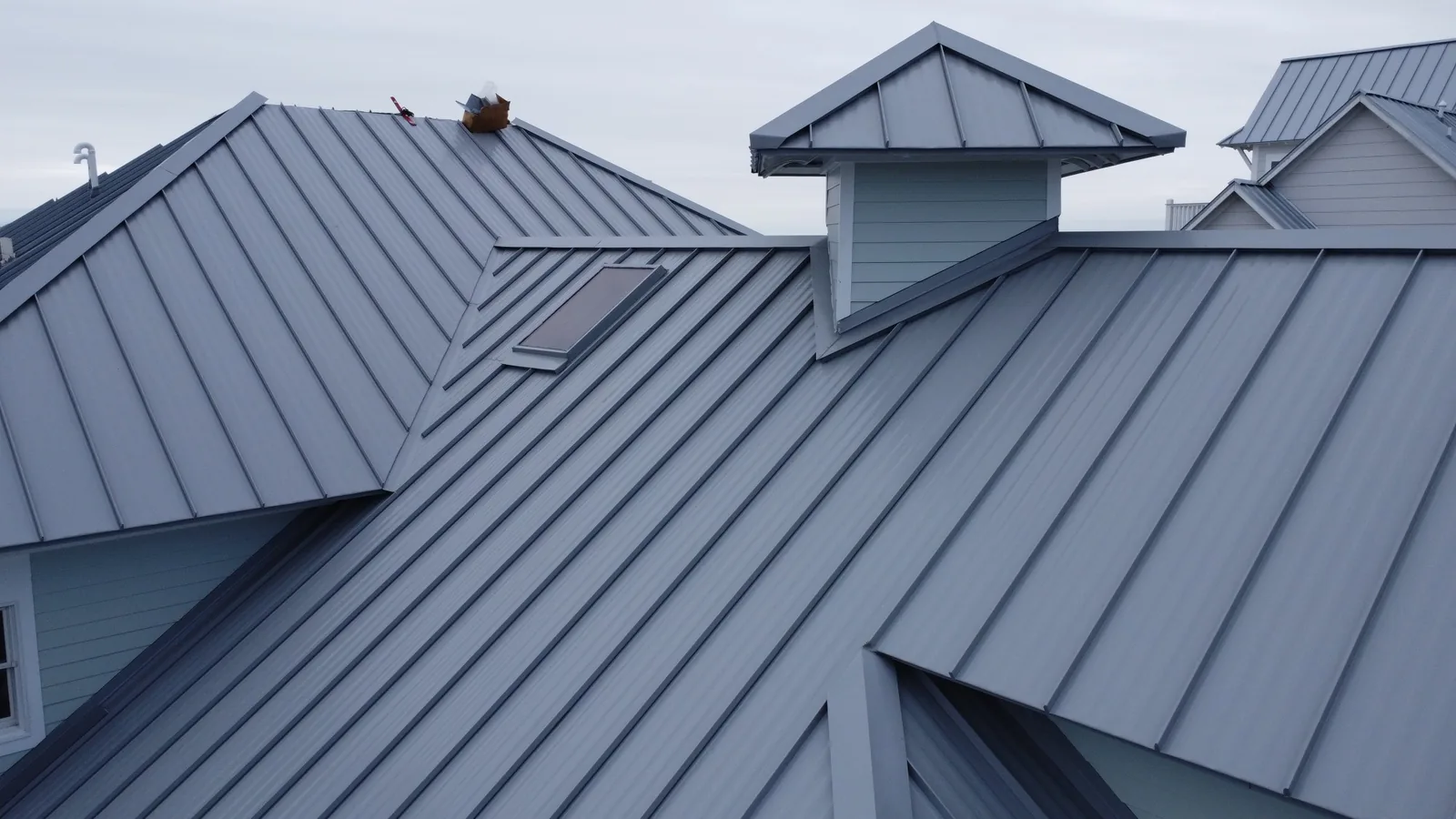

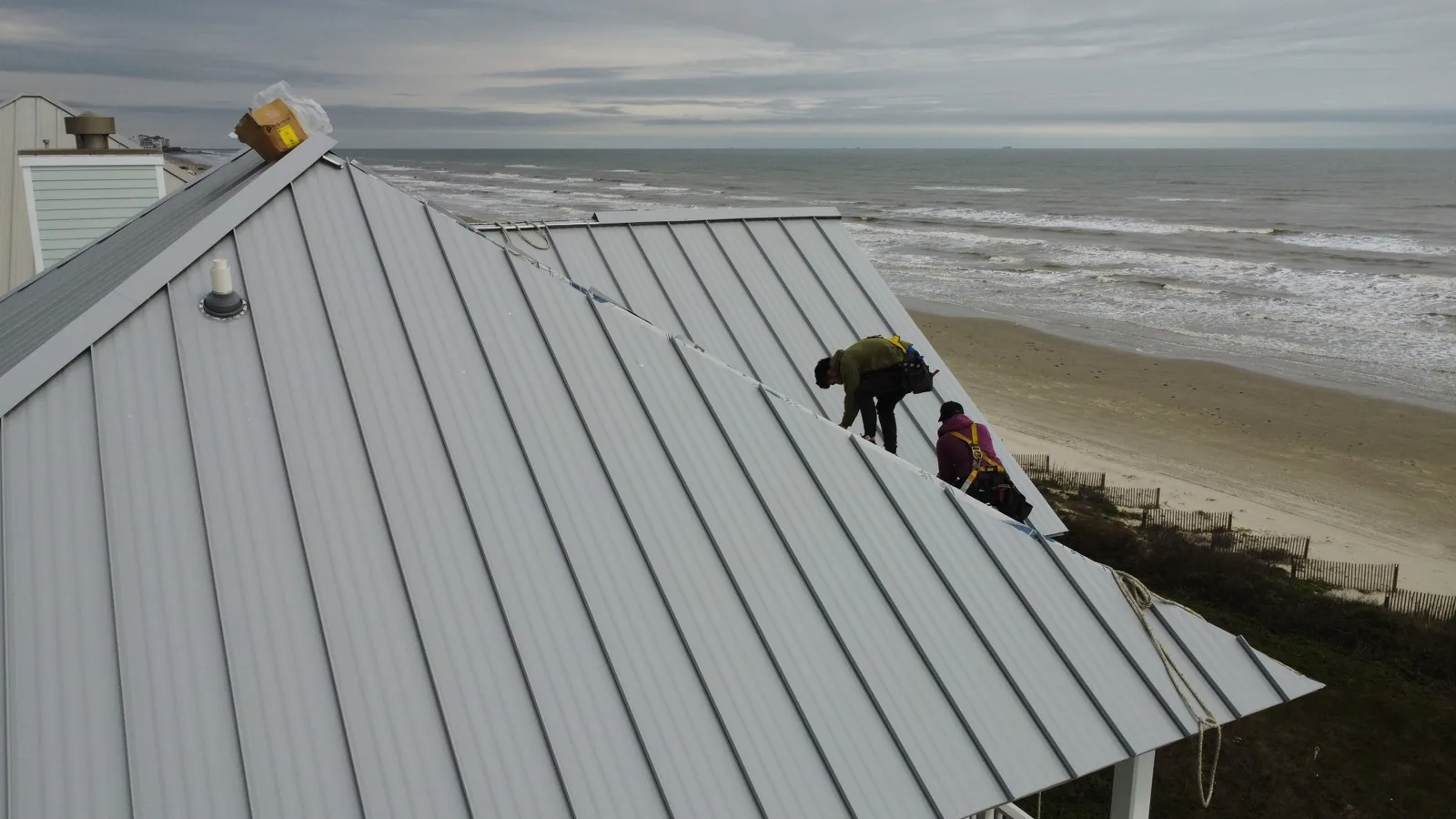

Standing seam · Galveston
Why standing seam in El Paso
On exposed-fastener roofs, the rubber screw washers are the part our sun wears out first — they can start failing at 10–15 years. Standing seam has no screws through the panel face.
A 24-gauge standing seam roof typically lasts 40–70 years (industry range, not a warranty).
The seams stand up above the flat of the panel, so water runs straight down the pans to the eave.
Light, reflective finishes send more of the sun back. The EPA reports reflective cool roofs can cut peak cooling demand 11–27% in air-conditioned buildings.
Maintenance
With no exposed screws, there's no washer to replace on a schedule. It's still worth a look now and then:
Our side-by-side guide covers fasteners, upkeep, looks and where each one fits.
FAQ
Don't see yours? Call us — we're happy to talk it through.
It costs more upfront than an exposed-fastener roof like R-panel, and our snap-lock standing seam needs a roof pitch of at least 3:12. In low sun, some slight waviness can show in the flat of the panel (oil-canning); striated pans help keep it to a minimum. For a home you plan to keep, we still think it's the best roof for El Paso.
Yes. All metal grows a little in the afternoon sun and shrinks again at night. On standing seam, concealed clips hold the panels to the deck without a screw through the panel face, so that daily movement isn't working against exposed screws and washers. On exposed-fastener roofs it is, which is one more reason those screws need checking over the years.
A little, yes. Flat metal can show slight waviness, called oil-canning, mostly in low morning or evening light. It's cosmetic and doesn't change how the roof sheds water. Striated pans, 24-gauge steel and a flat, solid deck help keep it to a minimum.
Standing seam has its own premium color range, separate from our 12-color R-panel chart. Ask us, and we'll bring physical chips to your site visit.
Yes. We bid 24-gauge snap-lock standing seam for commercial and institutional buildings. Send us the plans and the bid date.
Free estimates. Call us, or send a few details and we'll get back to you. Se habla español.
